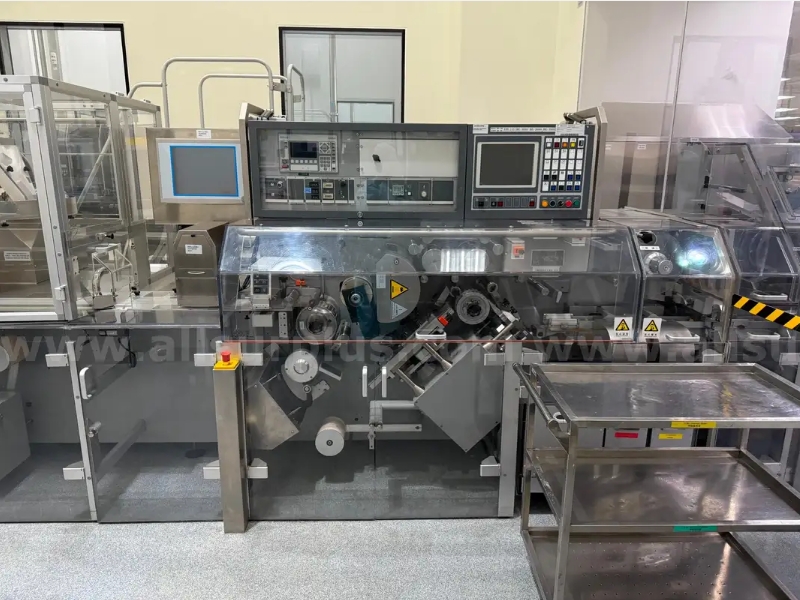

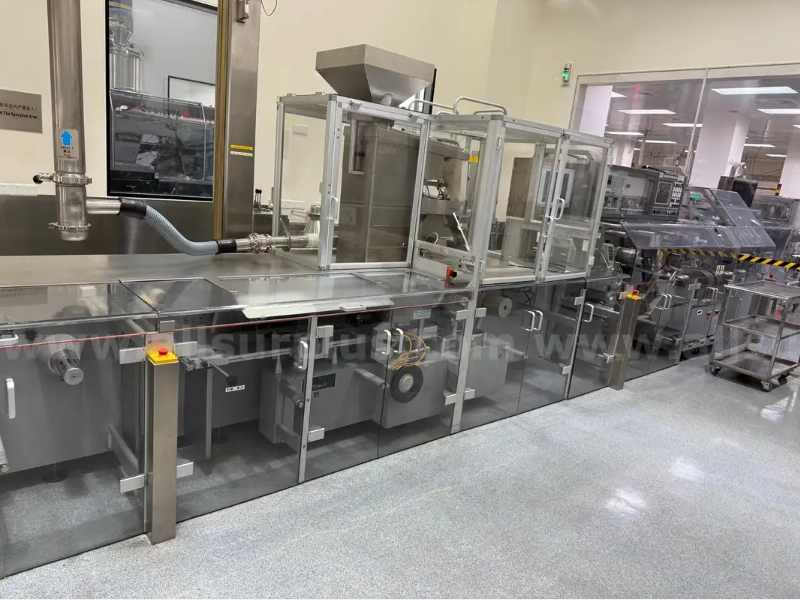

IMA 'C90' Blister Packaging Machine

Get a Price/Quote

Product Details:

Power Supply 3 Phase
Features Touchscreen HMI, Quick Changeover, Servo Drives
Filling Range Tablets, Capsules, Softgels
Usage Primary Packing of Solid Dosage Forms
Application Pharmaceutical, Nutraceuticals, Medical Devices
Noise Level <75 dB
Type Blister Packaging Machine
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IMA 'C90' Blister Packaging Machine Price And Quantity

Minimum Order Quantity 1 Unit

IMA 'C90' Blister Packaging Machine Product Specifications

Capacity 360 Blisters/Min
Computerized Yes
Usage Primary Packing of Solid Dosage Forms
Filling Range Tablets, Capsules, Softgels
Voltage 380V / 50Hz
Feature Other
Power Supply 3 Phase
Weight (kg) Approx. 2,000 kg
Application Pharmaceutical, Nutraceuticals, Medical Devices
Type Blister Packaging Machine
Auxiliary Packaging Machine Type Blister Packing Line
Noise Level <75 dB
Power 6.5 kW
Material Stainless Steel
Dimension (L*W*H) 5000 mm x 900 mm x 1800 mm
Control System PLC Control
Color Silver/Grey
Features Touchscreen HMI, Quick Changeover, Servo Drives
Automatic Grade Automatic
Drive Type Electric
Sealing Type Other

Feeding System Universal Automatic Feeder
Output System Automatic Discharge & Stacker
Optional Accessories Printing System, Vision Inspection, Reject Station
Water Consumption Minimum, for cooling only
Safety System Interlocked Safety Guards, Emergency Stop
Operator Panel Color Touchscreen Display
Air Consumption 200 L/min at 6 bar
Blister Size Range 60 x 145 mm max
Changeover Time <30 min
Packing Material PVC, PVDC, ALU, ACLAR
Compressed Air Required Yes
Max Forming Depth 12 mm
Compliance cGMP, CE Certified

IMA 'C90' Blister Packaging Machine Trade Information

Delivery Time 1

Product Description

The IMA C90 Blister Packaging Machine stands as a prodigious advancement in pharmaceutical packing with a highlighted maximum output of 360 blisters per minute. Crafted from pristine stainless steel, it features rare automated technologies like a universal automatic feeder, crowning its segment with quick changeover (under 30 minutes) and an intuitive touchscreen panel. Benefit from special rate energy savings, minimal maintenance, and state-of-the-art safety interlocks. Designed for excellence, this cGMP and CE-certified machine ensures sterling reliability for primary packing of tablets, capsules, and softgels.

Highlighted Applications and Crowning Features

The IMA C90 Blister Packaging Machine is used for the primary packing of solid dosage forms including tablets, capsules, and softgels. It features automatic discharge, a color touchscreen operator panel, high-speed output, and versatile feeding systems. Other special highlights include its quick changeover flexibility and user-friendly HMI. The machine finds prodigious utilization in pharmaceutical, nutraceutical, and medical device sectors, where precision packing and product integrity are vital for compliance and market success.

Premium Supply, Special Offer Terms, and Main Markets

With a premium supply ability, the IMA C90 Blister Packaging Machine is readily available for exchange worldwide. Special payment terms are offered to support client convenience, ensuring a seamless procurement process. Main target export markets include Europe, Asia, and North America. Whether you seek a rare investment in automated blister packaging or desire ongoing technical support, we offer unparalleled value backed by a commitment to excellence and prompt delivery.

FAQ's of IMA 'C90' Blister Packaging Machine:

Q: How does the IMA C90 Blister Packaging Machine streamline the packing process?

A: The IMA C90 automates blister forming, filling, sealing, discharge, and stacking, minimizing manual intervention and enhancing efficiency with its prodigious universal automatic feeder and quick changeover systems.

Q: What materials and dosages does this machine accommodate?

A: This machine is designed for packing PVC, PVDC, ALU, and ACLAR materials, and is suitable for tablets, capsules, and softgels in blister sizes up to 60 x 145 mm and a forming depth of 12 mm.

Q: When should a company consider upgrading to the IMA C90 model?

A: Companies seeking highlighted performance, pristine output quality, higher speed, and compliance with global pharmaceutical standards should consider the IMA C90 for scaling up or modernizing their packaging lines.

Q: Where can the IMA C90 Blister Packaging Machine be applied?

A: The machine excels in pharmaceutical, nutraceutical, and medical device manufacturing facilities where accuracy, speed, and product safety are paramount.

Q: What are the primary benefits of the cGMP and CE certifications?

A: These certifications assure clients of the machine's compliance with rigorous quality and safety standards, making it eligible even for rare export markets with stringent regulatory requirements.
