Electronics Manufacturing Equipment

Explore our comprehensive range of Electronics Manufacturing Equipment, designed to meet the varied demands of modern electronics assembly with unparalleled precision and efficiency. Our product lineup includes cutting-edge SMT Line 3, featuring FUJI NXT Chip Shooters and DEK Screen Printer, as well as SMT Line 4, integrating FUJI NXT Chip Shooters, Koh Young SPI, and the BTU Reflow Oven. As a trusted service provider, supplier, and trader with over a year of expertise, we ensure the best supply ability across All India, catering to businesses of all sizes with phenomenal reliability. The excellent performance of our equipment delivers higher production rates, superior soldering accuracy, and reduced downtime when compared to traditional manufacturing methods. The new releases in our range bring perfect efficiency, with features like advanced inspection systems and automated processes to enhance quality control. Notably, the compact design and energy efficiency of our equipment are ideal for achieving cost control and resource optimization. Offered at the best prices, our Electronics Manufacturing Equipment ensures exceptional operational value, providing businesses with the most innovative tools to stay ahead in the competitive electronics industry. Choose us for a service that blends excellence, expertise, and the latest in technology to empower your manufacturing capabilities.

SMT Line 3 comprised of FUJI NXT Chip Shooters, DEK Screen Printer

MOQ : 1 Unit

  • Automatic Grade
  • Other, Fully Automatic
  • Belt Diameter
  • Not Applicable (conveyor width: up to 460 mm)
  • Capacity
  • Up to 120,000 CPH (Components Per Hour) depending on configuration
  • Computerized
  • Yes
  • Dimension (L*W*H)
  • Typical line: 10,000-15,000 x 1,500 x 1,600 mm (LxWxH)
  • Frequency (MHz)
  • 50-60
  • Material
  • Industrial-grade steel, aluminum alloy, electronics
  • Preheating Plate Size
  • Not Applicable (for screen printer: 510 x 510 mm max PCB)
  • Size
  • Customizable line length, typical: 10 - 15 meters total
  • Type
  • SMT Line 3 (FUJI NXT Chip Shooters, DEK Screen Printer)
  • Voltage
  • 220V / 380V (dependent on regional specification)
  • Weight
  • Approximately 3,500 kg (entire line, varies with modules)
  • Width
  • Line width approx. 1.5 meters

SMT Line 4 comprised of FUJI NXT Chip Shooters, Koh Young SPI, BTU Reflow Oven

MOQ : 1 Unit

  • Capacity
  • 40,000 to 120,000 CPH depending on configuration
  • Computerized
  • Yes
  • Dimension (L*W*H)
  • 20,000 mm x 1,500 mm x 1,600 mm
  • Frequency (MHz)
  • 50/60 Hz
  • Material
  • Industrial-grade steel, aluminum and ESD components
  • Preheating Plate Size
  • Conveyor width: 50 mm - 460 mm (reflow oven)
  • Size
  • Line length approx. 20 m
  • Type
  • Automated SMT Assembly Line
  • Voltage
  • 220V AC / 380V AC
  • Weight
  • Approx. 6500 kg (entire line)
  • Width
  • Varies by module, typically up to 1.5 m

SMT Line 3 comprised of FUJI NXT Chip Shooters, DEK Screen Printer

MOQ : 1 Unit

  • Capacity
  • Up to 75,000 CPH (components per hour)
  • Computerized
  • Yes
  • Dimension (L*W*H)
  • 17,500mm x 1,300mm x 1,600mm (line length x width x height)
  • Frequency (MHz)
  • 50/60
  • Material
  • High-precision steel frame and industrial electronics
  • Preheating Plate Size
  • 450mm x 400mm
  • Size
  • Line Configuration; individual units vary
  • Type
  • Automatic SMT Assembly Line
  • Voltage
  • 220V AC, 50/60Hz
  • Weight
  • Approx. 2800 kg (entire line)
  • Width
  • SMT Line width typically 1300mm

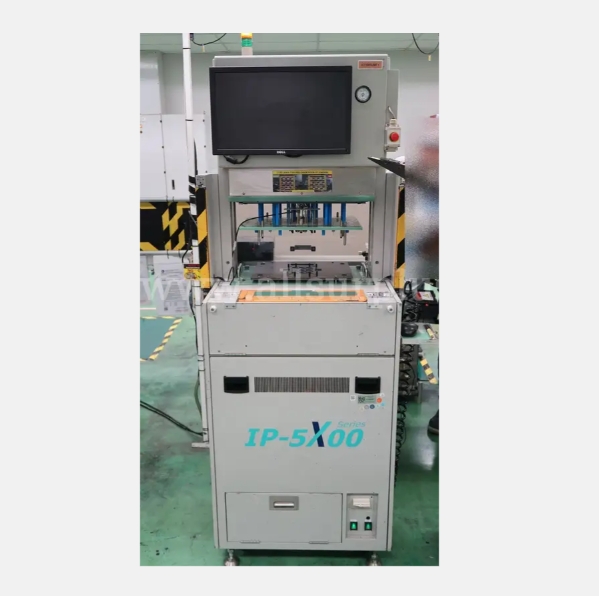

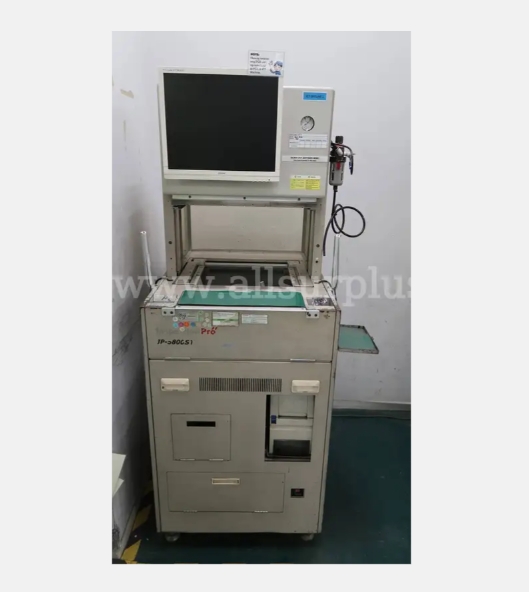

WIT In-circuit Tester

MOQ : 1 Unit

  • Automatic Grade
  • Semi-Automatic
  • Capacity
  • Suitable for medium to high volume PCB testing
  • Computerized
  • Yes
  • Dimension (L*W*H)
  • 650 mm x 600 mm x 1500 mm
  • Frequency (MHz)
  • 50/60 Hz
  • Material
  • Industrial Grade Metal and Electronic Components
  • Size
  • Standard Industrial Cabinet Size
  • Type
  • In-circuit Tester
  • Voltage
  • 220V AC
  • Weight
  • Approx. 120 kg
  • Width
  • 600 mm (approx.)

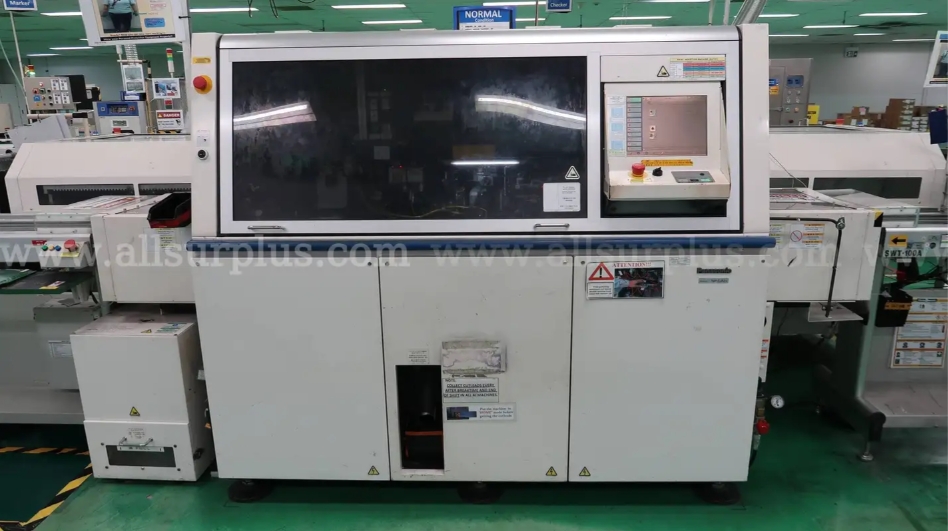

Complete SMT Line 1

MOQ : 1 Unit

  • Automatic Grade
  • Other, Fully Automatic
  • Belt Diameter
  • N/A (uses precision conveyors and feeders)
  • Capacity
  • Optimal throughput up to 50,000 CPH (components per hour) depending on model and configuration
  • Computerized
  • Other, Yes, fully computerized with integrated software controls
  • Cutting Thickness
  • Not applicable in SMT Line (No mechanical cutting)
  • Dimension (L*W*H)
  • 1500mm x 1500mm x 1700mm per machine (varies by module)
  • Frequency (MHz)
  • 50-60
  • Material
  • Industrial Grade Steel, Aluminum, and Composite Components
  • Preheating Plate Size
  • Typically 350mm x 400mm (customizable based on machine type)
  • Size
  • Configurable (typically 10-15 meters total length for full line)
  • Type
  • Complete SMT (Surface Mount Technology) Line
  • Voltage
  • 220-240V AC, 50/60Hz
  • Weight
  • Approximately 1200-2000 kg per machine module
  • Width
  • Approx. 1.5 meters per machine

Complete SMT Line 2

MOQ : 1 Unit

  • Automatic Grade
  • Other, Fully Automatic
  • Capacity
  • High-speed multi-head placement, up to 80,000 CPH (components per hour) depending on model and configuration
  • Computerized
  • Yes
  • Cutting Thickness
  • Not Applicable (for placement processes)
  • Dimension (L*W*H)
  • Approx. 7000-10000mm 1200mm 1700mm
  • Frequency (MHz)
  • 50/60
  • Material
  • Industrial-grade steel and precision components
  • Preheating Plate Size
  • Variable, typically up to 600mm width
  • Size
  • Modular sections, overall length approx. 7-10 meters
  • Type
  • Complete SMT (Surface Mount Technology) Line
  • Voltage
  • 220-240V AC, 50/60Hz
  • Weight
  • Approximately 3000-4000 kg depending on configuration
  • Width
  • Approx. 1.2 meters
