Haitian MA 13000II 6800 Injection Molding Machine

Get a Price/Quote

Product Details:

Product Type Injection Molding Machine
General Use Plastic Product Manufacturing
Material Alloy Steel
Type Horizontal
Style Haitian MA Series
Capacity 6800 kN Clamping
Weight (kg) 61000 kg
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Haitian MA 13000II 6800 Injection Molding Machine Price And Quantity

Minimum Order Quantity 1 Unit

Haitian MA 13000II 6800 Injection Molding Machine Product Specifications

Feature High Precision, Energy Saving
Style Haitian MA Series
Opening Stroke 1250 mm
Dimension (L*W*H) 11.9 x 2.9 x 3.0 m
Injection Pressure 170/151/129 MPa
Voltage 380 V / 50 Hz
Screw Diameter 100/110/120 mm
Screw Stroke 260/289/316 mm
Control System KEBA (PLC) / Haitian Techmation
Tie Bar Size 1330 x 1250 mm (distance between tie bars)
Pump Pressure 16 MPa
Capacity 6800 kN Clamping
General Use Plastic Product Manufacturing
Injection Rate 1127 g/s
Clamping Force 6800 kN
Automatic Yes
Material Alloy Steel
Product Type Injection Molding Machine
Color Blue/White
Ejector Force 190 kN
Screw Torque Available on request
Ejector Stroke 300 mm
Weight (kg) 61000 kg
Heating Power 67.8 kW
Fuel Tank Capacity 1200 L (Hydraulic Oil)
Mold Thickness 500-1200 mm (min-max)
Type Horizontal
Computerized Yes

Number of Heating Zones 8
Hydraulic Oil Type 46# anti-wear hydraulic oil
Screw L/D Ratio 22.2 / 20.3 / 18.5
Mold Opening/Closing Speed 0.4 - 0.6 m/s
Max Daylight 2450 mm
Ambient Temperature Tolerance up to 45C
Machine Noise Level < 75 dB
Max Injection Weight (PS) 4092 / 4779 / 5543 g
Injection Speed 146 mm/s
Power Consumption Approx. 85 kW
Cooling Water Requirement 240 L/min
Machine Model MA13000II/6800
Platen Size 1860 x 1670 mm
Drive System Servo Motor

Haitian MA 13000II 6800 Injection Molding Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Unit Per Month
Delivery Time 30 Days
Main Domestic Market All India

Product Description

Seize this hot deal on the renowned Haitian MA 13000II 6800 Injection Molding Machine! Engineered for high performance, this glorious machine offers first-string precision and reliability for plastic product manufacturing. Utilise our offer to experience superior power, energy-saving servo drive systems, and advanced KEBA (PLC) controls. Ideal for demanding manufacturing environments, it boasts a massive 6800 kN clamping force and accommodates thick molds, all while maintaining low noise levels and excellent cooling efficiency. Don't miss this exclusive deal-upgrade your production line today!

Why Choose the Haitian MA 13000II 6800?

The Haitian MA 13000II 6800 is built for organizations seeking competitive advantages such as high energy efficiency, precision molding, and robust capacity for large-scale plastic product manufacturing. With a clamping force of 6800 kN and a maximum daylight of 2450 mm, it handles complex and sizable molds with ease. Its horizontal design, computerized controls, and servo-driven system ensure optimal productivity for production facilities requiring durable, high-quality solutions.

Sample and Payment Flexibility for a Hassle-Free Experience

We offer a sample of the Haitian MA 13000II 6800 so you can evaluate its capabilities firsthand at a competitive rate. Our flexible payment terms are designed to maximize utilisation of your budget, and our offer includes transport services for swift, reliable machine delivery. We maintain a transparent sample policy, ensuring that you clearly understand costs, fees, and delivery timeframes before making your commitment.

FAQ's of Haitian MA 13000II 6800 Injection Molding Machine:

Q: How can I benefit from the hot deal on the Haitian MA 13000II 6800 Injection Molding Machine?

A: This exclusive deal allows you to acquire a renowned, first-string injection molding machine at competitive pricing, enabling you to enhance production efficiency, reduce energy costs, and significantly improve end product quality for plastic manufacturing.

Q: What kind of products can I manufacture with this injection molding machine?

A: The Haitian MA 13000II 6800 is ideal for the production of a broad range of plastic products, supporting diverse applications due to its high clamping force, rapid injection speed, and versatile mold accommodation.

Q: Where can I utilise the Haitian MA 13000II 6800 effectively?

A: This machine is best utilised in high-volume industrial settings such as manufacturing plants, plastic product fabrication units, and facilities that demand efficient, robust, and automatic injection molding solutions.

Q: What is the process for acquiring a sample or understanding the offer?

A: You can request a sample, review our sample policy, and consult with our team regarding the exact rate, payment terms, and transport services to ensure that the offer aligns with your business needs.

Q: How does the machine support energy saving and high-precision operations?

A: The Haitian MA 13000II 6800 injection molding machine is equipped with a servo motor drive system and advanced computerized controls, which together deliver energy-efficient and highly precise molding processes for superior output.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Injection Moulding Machine' category

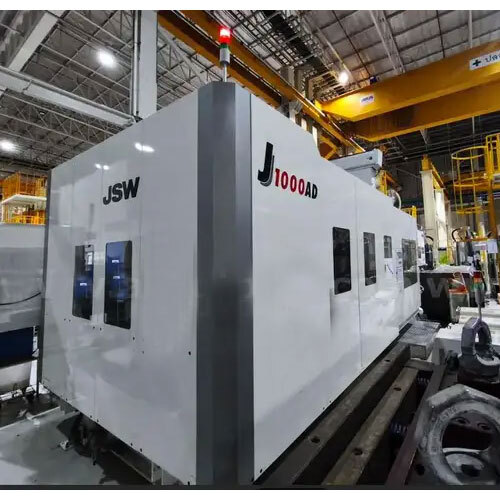

JSW J1000AD-3100H Injection Molding Machine Minimum Order Quantity : 1 Type : Other, Vertical Mold Thickness : 450 980 mm Computerized : Yes Weight (kg) : 45000 Fuel Tank Capacity : 1550 L Heating Power : 52 kW Ejector Force : 190 kN Screw Torque : 5200 Nm Ejector Stroke : 250 mm Automatic : Yes Clamping Force : 10000 kN Color : White & Blue Product Type : Injection Molding Machine Material : Other, Metal Capacity : 1000 Tonnes General Use : Plastic Product Manufacturing Injection Rate : 1140 g/s Pump Pressure : 25 MPa Screw Diameter : 120 mm Voltage : 380 V Control System : Other, PLC Tie Bar Size : 1240 x 1120 mm (distance between tie bars) Screw Stroke : 640 mm Style : Horizontal Feature : Other, High Efficiency, Precise Molding, Energy Saving Injection Pressure : 188 MPa Dimension (L*W*H) : 11.2 x 2.7 x 3.2 m Opening Stroke : 900 mm
