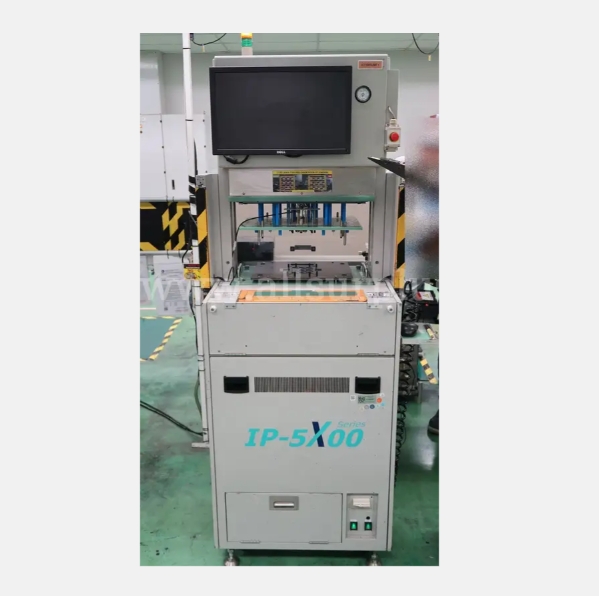

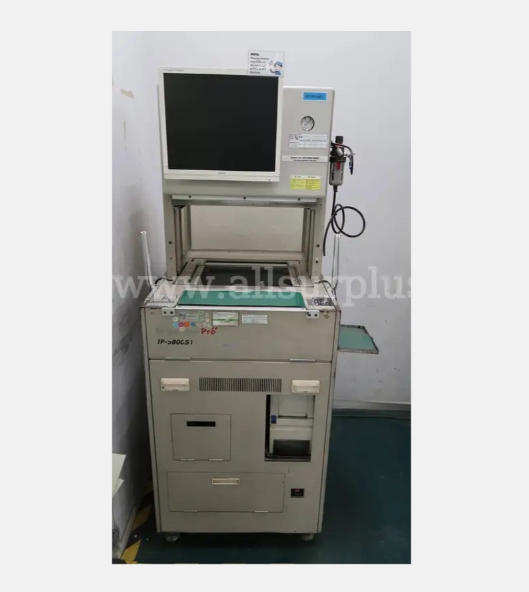

WIT In-circuit Tester

Get a Price/Quote

Product Details:

Type In-circuit Tester
Material Industrial Grade Metal and Electronic Components
Capacity Suitable for medium to high volume PCB testing
Computerized Yes
Automatic Grade Semi-Automatic
Voltage 220V AC
Frequency (MHz) 50/60 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

WIT In-circuit Tester Price And Quantity

Minimum Order Quantity 1 Unit

WIT In-circuit Tester Product Specifications

Size Standard Industrial Cabinet Size
Type In-circuit Tester
Automatic Grade Semi-Automatic
Capacity Suitable for medium to high volume PCB testing
Dimension (L*W*H) 650 mm x 600 mm x 1500 mm
Width 600 mm (approx.)
Weight Approx. 120 kg
Material Industrial Grade Metal and Electronic Components
Voltage 220V AC
Computerized Yes
Frequency (MHz) 50/60 Hz

Power Supply Single-phase
Connectivity Includes standard I/O and power inputs
Test Fixture Area Accommodates various PCB test fixtures
Supported PCBs Wide range of standard PCB sizes
Application Ideal for functional and ICT (In Circuit Test) of PCB assemblies
Cooling System Built-in ventilation fan
Display Integrated LCD/CRT monitor for control and display
Usage Electronics manufacturing and quality inspection
Control Interface Panel-operated with display and selector options
Safety Features Enclosed test chamber, emergency stop switch

Product Description

Discover the enlightened performance of the WIT In-circuit Tester with Display-your top-notch solution for versatile PCB functional and in-circuit testing. Outfitted with an integrated LCD/CRT monitor, panel-operated interface, and robust safety features, this virtuoso tester accommodates diverse PCB fixtures within a secure, ventilated chamber. Built for medium to high volume tasks, its industrial-grade metal construction and automated functions ensure efficient inspection in electronics manufacturing. Try now or buy online to optimize your production with this semi-automatic, computerized tester-purchase to experience proficiency and assurance.

Feature-Rich Virtuoso for Electronics Testing

WIT In-circuit Tester stands out with its integrated display, adaptable fixture area, and robust control interface. Tailored for functional and ICT tasks, it supports a wide spectrum of PCB sizes and offers seamless application in OEM factories, contract manufacturing units, and quality inspection labs. The tester's precise panel controls, sturdy build, and built-in ventilation elevate both performance and longevity across varied electronics production environments.

Samples, Certifications, and Global Packaging Benefits

Sample units are available to optimize your expenditure before bulk orders. Expect secure industrial packaging and certifications that reinforce product reliability-ideal for export markets. With express shipping options worldwide, receive your WIT In-circuit Tester efficiently, ensuring timely integration into your quality assurance line. Our certifications illustrate our commitment to international standards, empowering confidence for every trader, service provider, and supplier engaging in global commerce.

FAQ's of WIT In-circuit Tester:

Q: How does the integrated LCD/CRT monitor enhance the testing process?

A: The built-in LCD/CRT monitor provides real-time control and display during testing, which simplifies the process and improves operational accuracy for users.

Q: What types of PCB assemblies does the WIT In-circuit Tester accommodate?

A: It can accommodate a wide variety of standard PCB sizes, making it ideal for both functional and in-circuit testing in diverse manufacturing environments.

Q: Where can the WIT In-circuit Tester be applied?

A: The tester is suited for use in electronics manufacturing facilities, quality inspection departments, and contract manufacturing units handling PCB assembly.

Q: What safety mechanisms are included in the tester?

A: For user safety, the unit features an enclosed test chamber and an emergency stop switch, reducing risks during operation.

Q: What shipping options are available for international buyers?

A: Express shipping is available, catering to export markets with secure packaging that ensures the tester reaches you promptly and in optimal condition.

Q: How does the computerized control interface benefit operators?

A: The computerized panel makes the operation intuitive, allowing quick selection and setup, which enhances productivity for semi-automatic testing workflows.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electronics Manufacturing Equipment' category

Complete SMT Line 1 Minimum Order Quantity : 1 Weight : Approximately 12002000 kg per machine module Material : Industrial Grade Steel, Aluminum, and Composite Components Computerized : Other, Yes, fully computerized with integrated software controls Preheating Plate Size : Typically 350mm x 400mm (customizable based on machine type) Frequency (MHz) : 5060 Voltage : 220240V AC, 50/60Hz Capacity : Optimal throughput up to 50,000 CPH (components per hour) depending on model and configuration Dimension (L*W*H) : 1500mm x 1500mm x 1700mm per machine (varies by module) Width : Approx. 1.5 meters per machine Size : Configurable (typically 1015 meters total length for full line) Type : Complete SMT (Surface Mount Technology) Line Automatic Grade : Other, Fully Automatic Cutting Thickness : Not applicable in SMT Line (No mechanical cutting) Belt Diameter : N/A (uses precision conveyors and feeders)

Send Inquiry

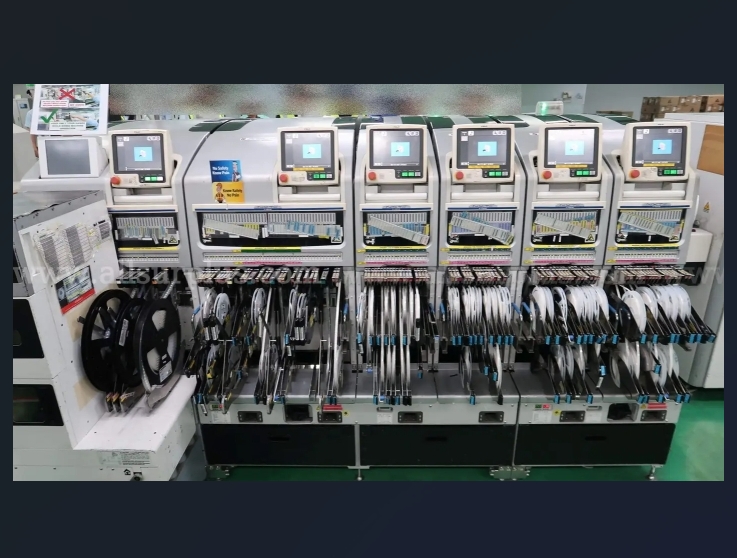

Complete SMT Line 2 Minimum Order Quantity : 1 Weight : Approximately 30004000 kg depending on configuration Material : Industrialgrade steel and precision components Computerized : Yes Preheating Plate Size : Variable, typically up to 600mm width Frequency (MHz) : 50/60 Voltage : 220240V AC, 50/60Hz Capacity : Highspeed multihead placement, up to 80,000 CPH (components per hour) depending on model and configuration Dimension (L*W*H) : Approx. 700010000mm 1200mm 1700mm Width : Approx. 1.2 meters Size : Modular sections, overall length approx. 710 meters Type : Complete SMT (Surface Mount Technology) Line Automatic Grade : Other, Fully Automatic Cutting Thickness : Not Applicable (for placement processes)
